    2kg Module Weight Multi-Channel Thermometer for High Accuracy Temperature Measurement

    Ask Lasest Price
    Brand Name : DEARTO
    Model Number : DTMC Series
    Supply Ability : 500 Set/Sets per Month
    Price : $4,000.00 - $6,000.00/sets
    • Product Details
    • Company Profile

    2kg Module Weight Multi-Channel Thermometer for High Accuracy Temperature Measurement

    Products Description

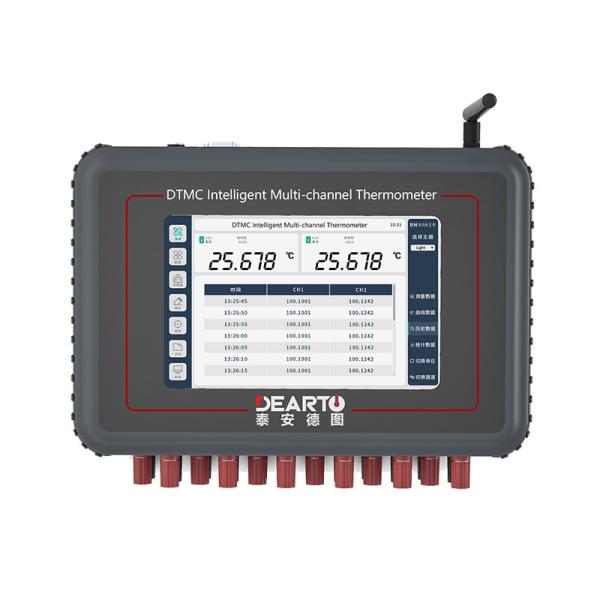

    DTMC series intelligent multi-channel thermometer is a multi-channel and multi-function
    thermometer based on modular design. The whole series is divided into four configurations: single-channel, two-channel,four-channel and six-channel. Platinum resistance measurement module, thermocouple measurement module or thermistor measurement module can be selected respectively, which have many advantages such as high precision, wide sensor coverage and rich functions.
    The product can be connected to the PC terminal or mobile terminal by wired or wireless way, suitable for thermostatic bath temperature field test, thermocouple furnace temperature field test, dry block furnace temperature field test, can be widely used in measurement calibration, scientific experiments and other precision temperature measurement related fields.
    Product Features
    Support standard platinum resistance(SPRT), industrial platinum resistance(PRT), thermocouple(TC)and thermistor(NTC) and other temperature sensors
    Support for the editing and configuration of the platinum resistance and thermistor sensor parameters
    The thermocouple channel provides an independent built-in cold-end temperature sensor with a temperature measurement accuracy better than 0.1℃
    Thermocouple cooling end compensation provides fixed value, internal automatic compensation and external compensation
    Each channel independent sampling, modular design, effectively improve the reliability and adaptability of the apparatus
    Each channel can be calibrated and corrected by single point, multipoint, piecewise linear or least squares independently
    Provide historical data, statistical data, curve data and other data display forms
    Support voltage, resistance, temperature and other data format storage and output
    Provide encryption algorithm support, can encrypt the data files, effectively improve the security
    Support RS232 and wireless communication mode, can connect to PC or mobile terminal
    Provide 8G large-capacity storage space for data storage
    Seven-inch industrial-grade color touch-screen display
    Product Paramenters
    Channel technical indicators
    2kg Module Weight Multi-Channel Thermometer for High Accuracy Temperature Measurement
    [1] Accuracy index: ± (ppm reading + ppm range);
    [2] Temperature coefficient index: increase the ppm reading per degree beyond (15 to 25) ℃.
    General technical indicators
    Power requirement
    12VDC 2A
    Communication interface
    RS232 Wireless
    Shell material
    Alufer +ABS
    Module size
    250mm×170mm×70mm
    Module weight
    2kg
    Environment
    Use
    (5~35)℃,(0~85)%rh
    Store
    (0~70)℃,(0~100)%rh
    Similar Products
    2kg Module Weight Multi-Channel Thermometer for High Accuracy Temperature Measurement

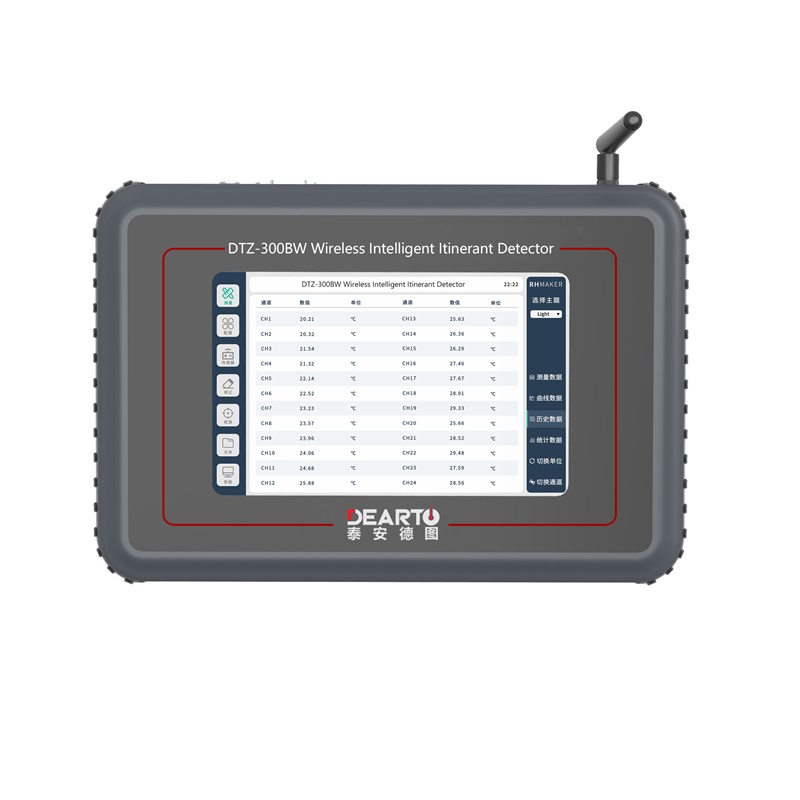

    DTZ-300BW Wireless intelligent multi-channel itinerant detector
