The best alternative to mercury thermometers
DTSW rod type standard (precision) digital thermometer, is the
latest in the field of industrial temperature calibration,
precision measurement, its accuracy and repeatability can be
achieved better than 0.05 ℃ / year, lithium batteries don't need to replace the battery life
long, easy to carry and intuitive readings, strong and durable. It
can not only be used as a temperature standard in the laboratory,
but also can provide reliable, accurate and high-precision
temperature measurement in the industrial field.
n Accurate and reliable: excellent accuracy indexes, annual change is
better than that of 0.05 ℃, the electric temperature less than 1 PPM / ℃
n Wireless communication: real-time data can be transmitted to the
computer screen through wireless communication
n Curve display: computer software can display 32 thermometer
real-time curves simultaneously
n Data recording: it can store the temperature measurement results of
16,000 bands
n Intelligent indication: trend indicator shows the trend of
temperature change
n Zero mark: any zero mark, volatility, deviation value intuitive
display
n Intelligent processing: the maximum, minimum and average values are
directly calculated and displayed
n Unit conversion: K, ℃, ℉ can be arbitrary switching
n Display of resistance value: the resistance value of the sensor is
displayed synchronously with the temperature value
n Regular shutdown: you can set the shutdown time from 1 minute to 48
hours
n Ultra low power consumption: no battery replacement for life
n Sampling adjustable: sampling cycle from 1S to 2H can be customized
to facilitate timed sampling
n Clean and corrosion resistant: the probe of food grade 316
stainless steel is corrosion resistant and easy to clean
n Easy to charge: the charging port is compatible with the mobile
phone, and any standard USB port can be easily charged

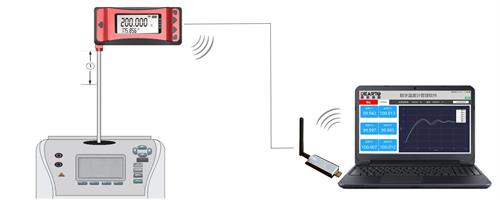

Wireless data transmission:
The Stick standardDigital Thermometer have wireless data
transmission function, which can transmit the collected real-time
data and historical data to the computer software remotely through
2.4G wireless communication, and analyze, process, save and export
the data through the computer software. Intuitive and convenient
use, the Stick Digital Thermometer won the favor of customers.
Wireless transmission application scenarios:
Wireless remote real-time reading temperature: remotely from the
device under test, remotely read temperature values
Wireless data export
can read thermometer historical measurement data without connecting
lines
Software function:
The digital thermometer management software can display the value
collected by the digital thermometer to the computer in real time
through wireless transmission. It can also read the internal
history data of the thermometer to the computer, or read and
display the historical data saved by the computer. The temperature
curve of each thermometer is displayed in real time on the right
side. The top can read the current mainstream desktop digital meter
values for displaying standard temperature values.
Software features
n Multi-channel display: as many as 32 thermometers are collected in
real time, and the maximum quantity can be expanded according to
the user's demand
n Intelligent curve: The thermometer curve is displayed in real time
on the right side, and the channel, color and thickness can be
freely configured.
n Digital table support: support mainstream 5 1/2, 6 1/2, 7 1/2, 8
1/2 desktop digital table
n Standard support: support standard platinum resistance data
calculation, just enter the value of the certificate can be used
n One-click readout: the historical temperature data saved by the
thermometer can be read into the software
n Report export: the data collected from the thermometer can be
exported to the EXCEL table for analysis
n Data import: it can import the historical data saved in the
computer into the software to display the curve
n Target value marking: the target value can be set in the curve to
view the heating and cooling time and curve of the constant
temperature source
n Thermometer calibration: support up to 64 point difference
calibration of the thermometer
n Battery display: The remaining battery value of each thermometer
is displayed in real time, and the power of each thermometer is
clear at a glance.
Name | Rod standard (precision) digital thermometer | Stick type digital thermometer for work (industrial grade) |
Model | DTSW-1-A | DTSW-1-B | DTSW-2-A | DTSW-2-B |
Temperature range | -60~160℃ | -60~300℃ | -60~160℃ | -60~300℃ |
Accuracy | 0.04℃+0.005%FS | 0.05℃+0.01%FS | 0.1℃/0.2℃ |
Calibration cycle | 1Year | 1Year |
Main engine temperature coefficient | <1ppm/℃ | <1ppm/℃ | <1ppm/℃ |
Length of sensor | 300mm,500mm(19.68 in) |
Sensor diameter | 6mm |
Sensor material | 316 stainless steel (medical, food grade) |
Sensor specification | Thin film platinum resistance | Wire wound platinum resistance |
Sensor temperature coefficient | Rated value:0.00385 Ω/Ω/℃ |
Display resolution | 0.001℃ (the user can be configured to 0.1 ℃, 0.01 ℃) |
Sampling frequency | 0.5s, 1S and 2S can be configured |
Thermal response time constant | 30S | 30S |
Data storage | 16,000 sets of data (with time stamp) |
Communications | USB and wireless communication |
Wireless communication distance | No occlusion up to 160m |
The battery type | High temperature lithium battery |
Lithium battery life | No less than 2000 cycles of charge and discharge |
Lithium battery charging time | 2 hours |
Charging voltage | DC5V | DC5V |
Preheating time | Preheat for 1 minute before use |
Working temperature of communication module | −20℃ - 60℃(14℉-122℉) |
Host working environment | −10℃ - 50℃(14℉-122℉) |
Main engine protection class | IP50 | IP50 |
Sensor protection class | IP68 | IP68 |
Host size (mm) | 106(L)X48(W)X37(H) |
Total weight | 202g |
Storage condition | −20℃-60℃(−4℉-140℉) 5%RH-80%RH(Without condensation) |
