DT Pro wireless temperature / humidity / pressure verification
system can be widely used in equipment verification and
environmental monitoring in pharmaceutical, food, biological,
chemical and other industries. Compared with the traditional wired
verification system, the probe can be conveniently and quickly
arranged, and the detection point is not physical constraints greatly improve verification efficiency.
Function
The system consists of a wireless recorder (temperature,humidity,
pressure), a data reading workstation, and wireless verification
software.
The temperature recorder can effectively store 16000 pieces of
data, and the temperature measurement accuracy is 0.1 ℃, which
fully meets the needs of equipment and process verification in food
and drug production enterprises and the verification needs in the
fields of bioengineering, medical and transportation. The recorder
uses replaceable batteries, with large power, low power consumption
and long battery life. Adopt high pressure and waterproof design,
can be used continuously for a long time in high pressure and high
humidity environment.
The data reading workstation is divided into a single-hole
workstation and a 10-hole workstation. The universal USB serial
port is used to connect to the computer, and data communication can
be carried out conveniently, efficiently and safely.
The software realizes data collection, data analysis and report
generation, meets FDA 21 CFR Part 11, and supports electronic
signature of documents. Support custom stages and verify each stage
to generate stage verification report.
Product features:
- Switch between Chinese and English versions at will;
- Comply with FDA 21CFRPart 11 regulations;
- With data audit tracking function, with three levels of authority
(freely assignable authority);
- It has data statistical analysis functions, including large and
small values, average value, span, temperature difference at the
same time, F0 value test, etc., and can be freely selected
according to needs.

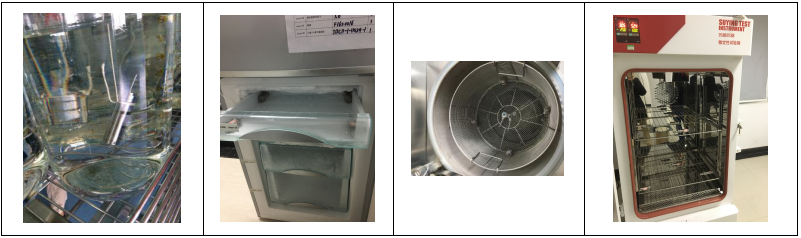

Application scenarios:
The system can be applied to GMP pharmaceutical industry, GSP
industry, biological industry, medical industry, food industry,
transportation industry.
GMP | Steam sterilizer verification / water bath sterilizer verification,
rubber plug washer verification / aluminum lid washer verification,
freeze dryer verification / cryogenic refrigerator verification,
constant temperature and humidity chamber verification / stability
incubator verification |
GSP | Cold storage verification / refrigerated truck verification,
refrigerator / incubator verification, cool storage / normal
temperature storage verification |
Biological | Stirred fermentation tank verification, culture tank verification,
process development data |
Food | Pasteurization verification, sterilization tunnel verification,
rotary freezer verification, blast freezer verification, cold room
verification |
Transport | Cold chain process tracking, cabin temperature detection |
Medical | High temperature sterilization testing, steam sterilization
testing, medical supplies testing |
| Temperature Verifier | Temperature and humidity tester | Pressure Verifier |
Model | TDLA | TDLC(Flexible probe) | MDLA | PDLA |
Operating temperature | -50 ~ 150 ℃(expandable to 400℃ with heat insulation box) | -50 ~ 150℃ (expandable to 400℃ with heat insulation box) | -40~125℃ | -40~140℃ |
Range | -50~150℃ | -50~150℃ | 0~100%RH | 0~100psi
0~6.894Bar
(Absolute pressure) |
Resolution | 0.01℃ | 0.01℃ | 0.01℃ | 0.008psi; |
0.01%RH | 0.55mBar |
Accuracy | ±0.1℃ | ±0.1℃ | ±0.2℃ | ±0.25% Full scale |
±2%RH |
Sensor | Pt100 Class 1/3 DIN | Pt100 Class 1/3 DIN | Temperature: Pt100 | Strain |
Humidity: capacitive |
Capacity (recording points) | 64,000 | 64,000 | 8,000 | 8,000 |
Record frequency | 1 second to 18 hours | 1 second to 18 hours | 1 second to 18 hours | 1 second to 18 hours |
Battery Life | 36 months | 36 months | 12 months | 12 months |
Communication method | RS 485 Contact | RS 485 Contact | RS 485 Contact | RS 485 Contact |
