Touch Control Mobile Temperature Calibrator with OBM Customized Support -40-180 deg C

Ask Lasest Price
Brand Name :	DEARTO
Model Number :	DTS-40BG
Certification :	CE / ISO9001
Supply Ability :	1000 Set/Sets per Month
Price :	$2,400.00 - $7,500.00/sets

Add to Cart

Product Details
Company Profile

Touch Control Mobile Temperature Calibrator with OBM Customized Support -40-180 deg C

Product Overview

DTS-BG ultra-portable intelligent thermostatic bath is a high-precision automatic control temperature verification device,which has the characteristics of good temperature stability, uniform temperature field and high temperature control accuracy.Adopt fully enclosed compressor refrigeration system and intelligent PID adjustment to realize automatic temperature control. The bath is compact in structure, light in weight, easy to carry and durable. It is suitable for the on-site verification/ calibration of various types of industrial thermal resistance, low temperature thermocouples, armored thermocouples, working glass liquid thermometers, standard mercury thermometers, bimetal thermometers, pressure thermometers and other temperature sensors.

FEATURES AT A GLANCE

* Compact dimensions;

* Intelligent touch screen control;

* Display temperature difference,fluctuation data;

* Automatic segment temperature control,rapid cooling/heating "0"overshoot;

* Micro-circulation technology;

* Temperature curve display. ETC

Touch Control Mobile Temperature Calibrator with OBM Customized Support -40-180 deg C

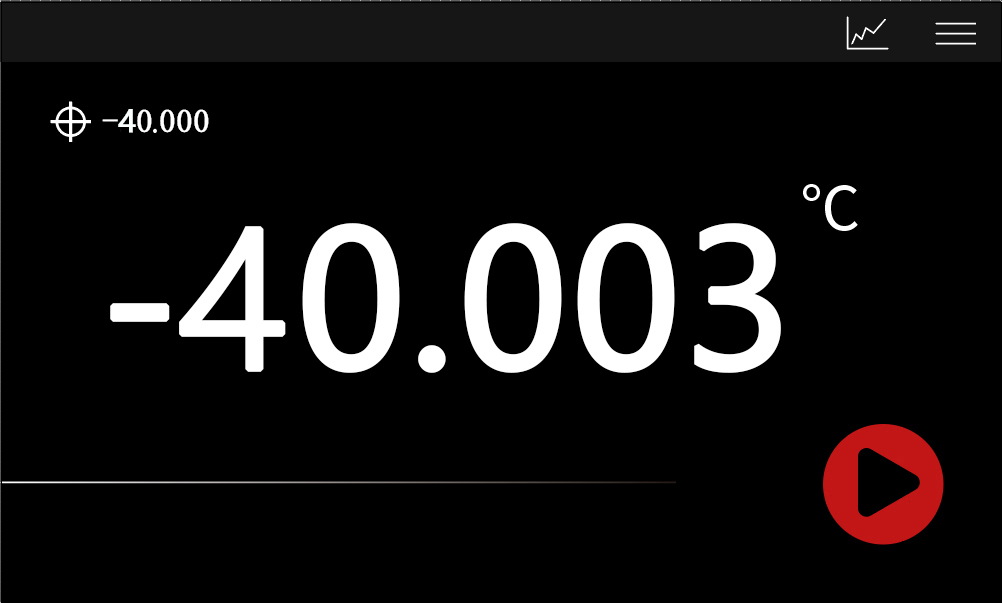

Operation interface

Starting interface

Curve display interface

Setting interface

PRODUCT SPECIFICATIONS

Product name	Intelligent micro refrigerated/heated thermostatic bath
Model	DTS-10BG	DTS-20BG	DTS-30BG	DTS-95BG	DTS-125BG	DTS-40BG
Temperature range	-10℃~180℃	-20℃~150℃	-30℃~150℃	-40℃~95℃	-40℃~125℃	-40℃~150℃
Temperature range			-20℃~180℃	-30℃~180℃			-40℃~180℃
Control method	Touch screen
Display resolution	0.001℃
Temperature fluctuation	≤±0.02℃/10min（0℃）
Temperature uniformity	≤0.02℃（0℃）
Heating rate	6.5℃~11.5℃/min
Cooling rate	5℃~10℃/min（20℃）
Work area size	Φ80×280 mm / Φ100×280 mm
Dimensions（mm）	500(L)×220(W)×600(H)
Working medium	Special medium					Anhydrous alcohol	Special medium
Remarks	Flange size can be customized according to customer needs

Certifications

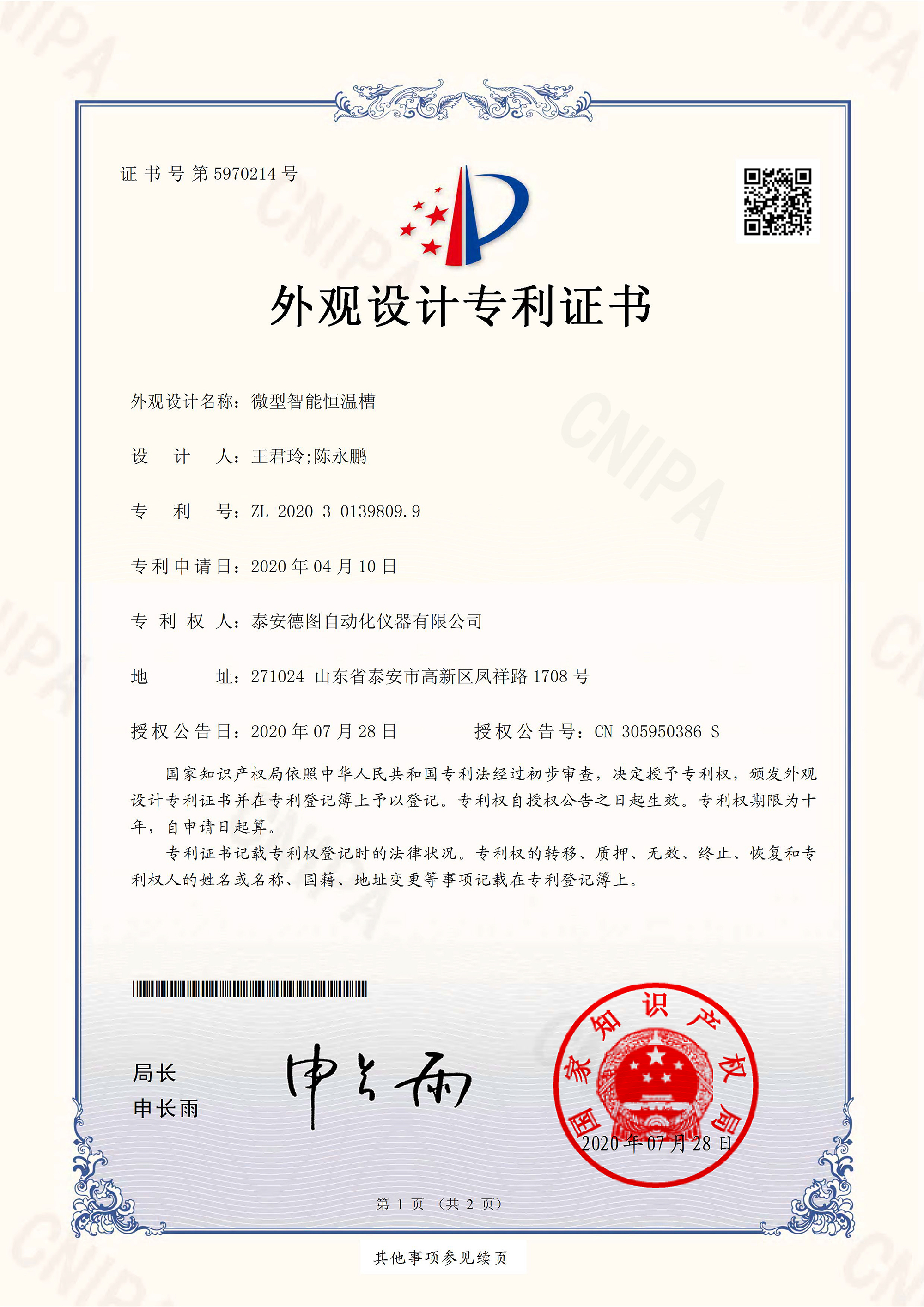

Patent certification

CE certification
